Brife Description：

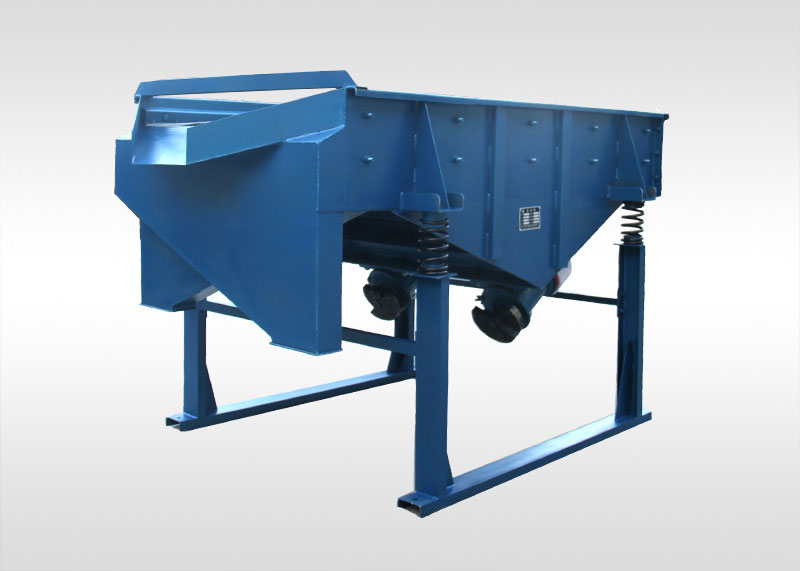

DZSF Series Linear Vibrating Screen is a kind of common closed light-duty vibrating screen equipment which use excellent vibrating motor as power source,that the materials can be thrown up on the sieve and forward to make a straight movement. The material evenly enter into the inlet from the feeder.It can be equipped with single or multi-screen to achieve the grading, removing impurity, removing dust, testing, washing selecting, dehydration etc.

Applied Field:

It’s widely used in food, harmaceutical,chemical,metallurgy,building material,mining,thermal power,environmental protection and other fields, market share has leading position in the industry

Distinctive Feature:

1.Dust proof ,durable design,simple operation.
2. Easy and convenient to clean up and change meshes.
3.Energy-saving and low noise with vibration motor.
3. Carbon steel or stainless steel.
5.Mesh size can be customized by customer standard.

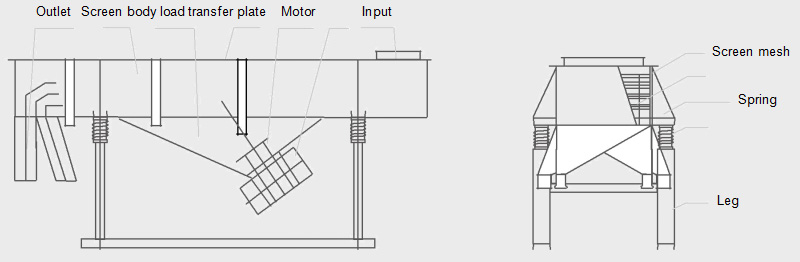

Working Principal:

Technical Parameter

Model	Screen Specification (mm)	Layer	Mesh Size(mm)	Particle Size(mm)	Vibrating Frequency (r/min)	Double Amplitude (mm)	Power (KW)	Vibrating Direction Angle （°）
GZSZ525	500×2500	1--6	0.074-10	0.06-15	960, 1450	4--8	2×0.4, 2×0.75	45-60
GZSZ1020	1000×2000	1--6	0.074-10	0.07-20	960	4--8	2×0.75, 2×1.5	45-60
GZSZ1025	1000×2500	1--6	0.074-10	0.07-15	9,601,450	5--8	2×0.4, 2×0.75	45-60
GZSZ830	800×3000	1--6	0.074-10	0.1-20	960	6--8	2×0.75, 2×1.5	45-60
GZSZ1030	1000×3000	1--6	0.074-10	0.1-20	960	6--8	2×0.75, 2×1.5	45-60
GZSZ1224	1200×2400	1--3	0.074-10	0.1-23	960	6--8	2×0.75, 2×1.5	45-60
GZSZ1230	1200×3000	1--3	0.074-10	0.1-23	960	6--8	2×1.5	45-60

(NOTE:All kinds of powder materials can be saparation and classification .All kinds of liquid and slurry can be filtere. It can equip with single-layer or multi-layer screen to achieve the target of rating, impurity, removing powder, testing, washing, dehydration etc.)
