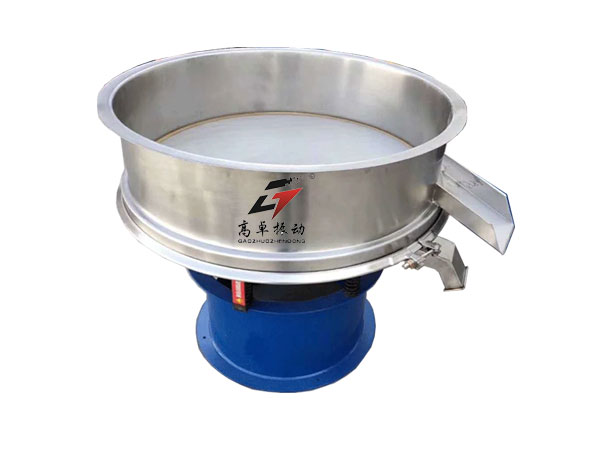

This ceramic slurry filter screen is a professional vibrating screening equipment specially developed for solid-liquid separation of ceramic slurry and other high-ciscosity liquids. It realizes material startification and precise filtration through high-frequency vibration and is widely applied in ceramic production, environmental sewage treatment and mineral processing industries.

Working Principle:

Driven by a vibration motor, the vibrator generates stable high-frequency excitation force. Eccentric weights convert motor rotation into three-dimensional compound vibration including horizontal, vertical and titling movements, which drives the screen surface operate continuously. After slurry enters the screen box from the feeding port, vibration force disperses materials evenly. Fine particles pass through the screen mesh while coarse impurities travel along the screen surface and are discharged from the residue outlet. Continuous vibration prevents mesh blocking and greatly improves overall filtration efficiency.

Product Features:

1. Excellent wear and corrosion resistance

The screen mesh is made of professional ceramic or special alloy materials, which adapts to highly corrosive slurry environments and extends equipment service life significantly.

2. Flexible adjustable parameters

Vibration amplitude and frequency can be adjusted freely according to material ciscosity and particle size, helping users optimize screening accuracy and working efficiency for different materials.

3. High-efficiency fully enclosed structure

The fully sealed design prevents material splashing and dust leakage, fullly meeting environmental protection standards. Built-in shock absorption components reduce running noise and equipment wear.

4. Strong high-temperature adaptability

Profesional ceramic filter elements resist temperatures up to 1000°C, supporting continuous filtration of high-temperature slurry in harsh working conditions.

5. Low operation and maintenance cost

The simple mechanical structure allows easy daily cleaning. Ceramic filter elements can be regenerated through back flushing, effectively reducing downtime and improving continuous production capacity.

Application Fileds:

1. Ceramic industry

Used for impurity removal and particle grading of ceramic raw slurry to stabilize billet molding quality and improve finished product consistency.

2. Environmental protection and sewage treatment

Effectively filter suspended substances such as ink residues and heavy metal particles from industrial wastewater to help enterprises achieve standard discharge and water recycling.

3. Mining processing
Separate solid particles from mineral slurry, reduce impurities and improve mineral beneficiation efficiency.

4. Food and pharmaceutical industry

Purity viscous materials such as starch slurry and liquid medicine to remove impurities and guarantee final product purity.

Inquiry Guide:

If you are facing low filtration efficiency, frequent mesh blockage or poor impurity removal effect in high-viscosity and high-temperature slurry processing, our ceramic slurry filter vibrating screen can provide stable, durable and low-cost solid-liquid separation solutions. We support personlized parameter adjustable and structural customization according to your material characteristics. Contact us today to get professional technical support and a free quotation!
