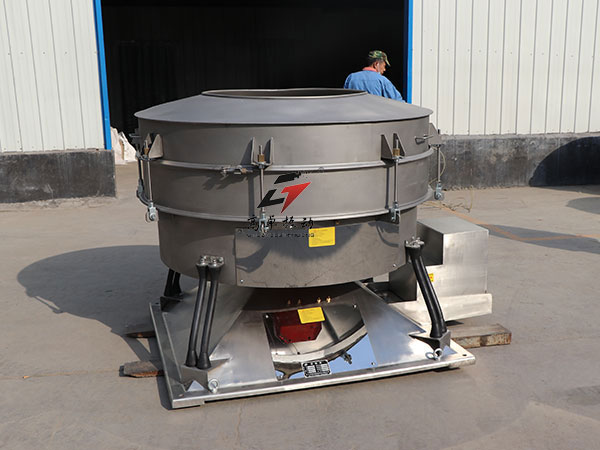

The round tumbler screen, also known as a tumbler vibrating screen, is a low-frequency rotary sifter designed to mimic manual sieving action. Its instantaneous movement combines radial displacement with circumferential rotation around that displacement axis, forming a helical motion path. Driven by an adjustable-eccentricity exciter that generates non-linear three-dimensional vibration, materials on the deck follow a trajectory nearly idential to manual sieving to achieve accurate separation. When paired with dedicated screening accessories, it delivers even more optimized results. It is ideal for spherical, cylindrical, flaky and irregularly shaped materials that require precision grading and are prone to mesh clogging.

Working Principle

Engineered specifically to meet high-output, high-density and ultra-fine sieving demands, this round tumbler screen represents a new generation of sieving equipment. It faithfully replicates the effective mechanics of manual sieving, delivering 5 to 10 times the performance of conventional vibrating screens in terms of accuracy, efficiency, throughput and mesh service life. It handles all fine fine powder and granular materials, and excels especially with hard-to-screen substances. Operators can fine-tune independent parameters including rotation speed, eccentricity and radial force based on material properities and specific sieving requirements. This dajusts material retention time and movement path acros the screen deck to achieve optimal separation results.

Key Features

1. High sieving efficiency with a compact, durable design; capable of processing all types of powders and irregularly shaped particles.

2. A dedicated mesh cleaning device installed on the screen deck effectively resolves mesh clogging issues.

3. No aperture blockage and no dust spillage; capable of sieving materials down to 500 mesh or 0.028 mm.

4. Automatic discharge of impurities and oversize materials, enabling uninterrupted continuous operation.

5. Optimized screen frame design extends mesh service life and allows fast mesh replacement in just 3 to 5 minutes.

6. Compact footprint saves floor space and allows easy mobility on the production site.

7. The machine can be configured with up to five screen decks; a three-deck setup is recommended for optimal performance.

Application Scope

This equipment is widely used for fine material classification and grading across a broad range of industries, including chemicals, pharmaceuticals, food and spices, animal feed, plastics, rubber, fertilizers, sugar and salt processing, woodworking and plywood manufacturing.

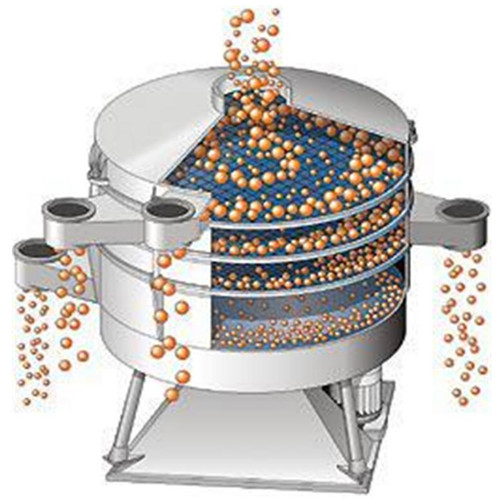

Working Principle Disgram



If you are facing production bottlenecks such as low throughput, frequent mesh clogging or insufficient grading accuracy in fine material processing, our round tumbler screens provide a field-proven, cost-effective solution even for the most challenging sieving applications. We offer fully customizable configurations of deck quantity, mesh specifications and motion parameters to align with your exact production requirements. Contact us today to discuss your application details and request a free, no-obligation quotation.
