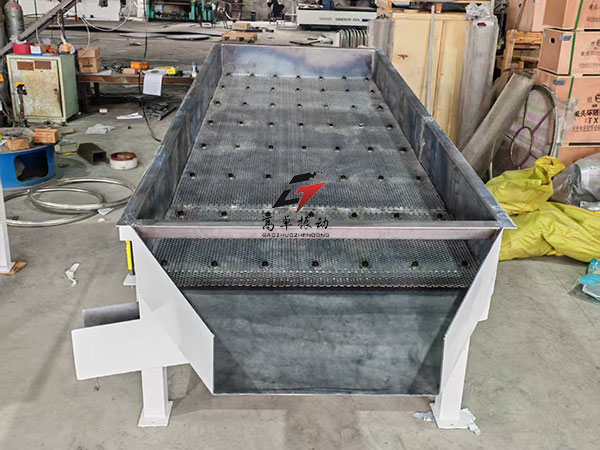

The linear vibrating screen draws its excitation force from dedicated vibration motors, which lift material particles on the screen deck and drive them forward in a steady linear path. Materials are fed uniformly into the machine inlet through a feeding device, and are separated into multiple grades of oversize and undersize fractions via multi-layer screen decks, with each grade discharhed through its dedicated outlet. The unit stands out for low energy consumption, high throughput, simple structure and easy maintenance. Its fully enclosed body eliminates dust spillage, and the automatic discharge design makes it perfectly suited for continuous inline production operations.
Working Principle:
The linear vibrating screen is powered by a dual-vibrator drive system. When the two vibrator rotate synchronously in opposite directions, the excitation forces generated by their eccentric weights cancel each other out in the direction parallel to the motor axis, and merge into a combined resultant force perpendicular to the axis, giving the screen body a pure linear motion trajectory. The two motor shafts are installed at an inclined angle relative to the screen surface. Under the combined action of excitation force and material gravity, materials are lifted and move forward in a jumping linear motion on the screen deck to achieve screening and size classification. Suitable for automated inline production, the unit boasts low energy consumption, high efficiency, simple structure and easy maintenance, with a fully enclosed structure that prevents dust escape. It can reach a maximum sieving fineness of 400 mesh and separate materials into up to 7 different partivle size fractions.
Application Scope:
The linear vibrating screen handles screening and classification of powdery and granular materials, and finds wide application in industries including plastics, abrasives, chemicals, pharmaceuticals, building materials, grain processing, carbon products and fertilizers.
Operation & Design Highlights:
1. The machine features a compact, well-engineered design for simple assembly, and can be operated by a single person.
2. Compared with competing models on the market, it offers a larger effective screening area and higher processing throughput.
3. Its unique screen frame structure enables fast, hassle-free mesh replacement in just 3 to 5 minutes, and is compatible with various mesh materials including nylon, specialty synthetic fiber and polypropylene.
4. The supporting parent mesh provides full reinforcement for the fine working mesh, significantly extending fine mesh service life, reducing consumable consumption and lowering long-term production costs.
If you are seeking a dependable, high-output sieving solution for your production line, or want to cut operating coasts while maintaining consistent classification accuracy, our linear vibrating screens offer a filed-proven, fully customizable solution for diverse industrial scenarious. We can tailor mesh count, layer configuration and discharge setup to match your specific material properties, capacity targets and site layout requiremenys. Contact us today to review your application and receive a free, no-obligation quotation.
