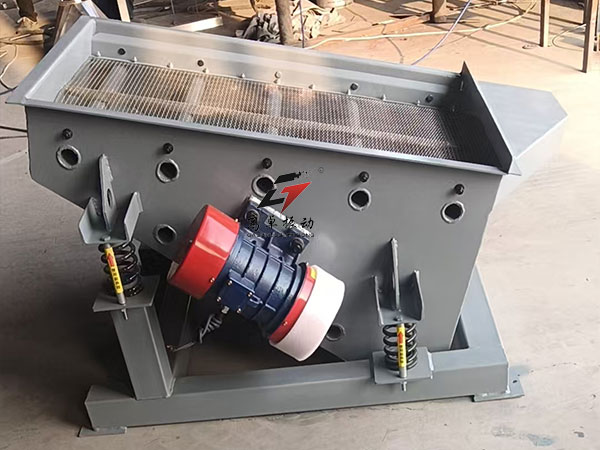

Also known as direct-discharge vibrating screen, the unit is a high-efficiency sieving machine driven by one or two horizontal vibration motors as the excitation source, delivering rapid material classification through mechanical vibration. Its core design adopts a direct-discharge structure, where oversize and undersize materials discharge separately through dedicated outlets to prevent clogging and significantly boost processing efficiency. Widely used in chemical, food, pharmaceutical and metallurgical industries, it handles both coarse and fine sieving of granular and powdery materials, and supports single or multi-layer configurations to meet multi-stage classification demands. It modular design simplifies maintenance, while the fully enclosed structure effectively contains dust to meet environmental and hygiene standards.

Working Principle:

The direct-discharge linear vibrating screen operates on excitation force generated by vibration motors. Once materials enter the screen box, the periodic centrifugal force from the motors drives the screen body in linear reciprocating motion, with the vibration direction set at an angle of typically 45° to 60° relative to the screen surface. Driven by the exciation force, materials are lifted and move forward in a jumping trajectory while being strtified: particles smaller than mesh apertures pass through the screen as undersize products, while the remaining oversize materials travel along the screen surface and discharge through the oversize outlet. This process not only enables fast sieving, but also helps loosen, disperse and reorganize material particles to ensure consistent sieving accuracy and efficiency. With a dual-motor configuration, excitation forces supermpose in thevertical direction to further optimize the material movement traiectory.

Key Features:

1. High processing capacity

The direct-discharge design shortens material retention time and speeds up discharge, delivering 2 to 5 times the throughput of conventional screens to meet large-scale production requirements.

2. Compact structure and easy maintenance

The low-profile flat design reduces overall height and saves floor space. Screen mesh replacement is dtraightforward, and modular components such as springs and motors can be serviced individually to minimize downtime.

3. Environmental protection and hygiene compliance

The fully enclosed structure effectively prevents dust leakage and keeps operation noise low. It complies with food-grade GMP standards, making it suitable for pharmaceutical and food processing applications.

4. Strong adaptability

It supports single or dual motor confifurations with adjustable excitation force. It handles dry materials with moisture content below 10%; sticky materials can be processed when paired with a mesh cleaning device.

5. Versatile functionality

Inlet and outlet can be customized, for example with butterfly valves, for seamless integration into existing production lines.

Applications:

The direct-discharge linear vibrating screen is widely applied across multiple industries:

1. Chemical industry: Sieving raw materials such as resins, coatings and fertilizers to ensure uniform particle size and improve product quality.

2. Food and pharmaceutical industry: Processing flour,starch and additives in compliance with strict hygiene standards to avoid cross-contamination.

3. Metallurgy and building materials industry: Classifying metal powders and zinc oxide powder to improve raw material utilization and reduce waste generation.

4. Environmental protection and agriculture: Sieving feed additives soda ash and other materials to optimize production processes and lower energy consumption.

As an essential piece of equipment for the powder processing sector, the direct-discharge linear vibrating screen is particularly well suited for high-precision, high-volume sieving scenarios.

If you need to upgrade your sieving line for higher throughput without compromising product purity or environmental compliance, our direct-discharge linear vibrating screens provide a robust, flexible solution parameters. We offer tailored options for mesh count, layer numberr and outlet design to fit diverse material characteristics and production layouts. Contavt us today to dicuss yourapplication and request a free, bo-obligation qutotation.

Email: tujingli@gzvibratinfscreen.com丨Phone: +86 13403738206
