The side-mounted linear vibrating screen is a high-performance sieving unit. It operates on the principle of synchronized counter-rotating dual vibration motor, which produce a combined linear excitation force to drive materials forward in a jumping motion across the screen surface and complete classification. Its core advantages include compact structure, low overall height, small footprint and effective water splash protection for motors,making it well suited for sites with vertical space constraints.

Working Principle:

Dual vibration motors serve as the excitation source. Running in synchronized reverse rotation, the eccentric weights on the motors generate centrifugal forces that superimpose horizontally to form a linear excitation force, driving the screen box and screen mesh to perform linear reciprocating motion. Material on the screen surface are lifted and move forward in a jumping trajectory. Particles smaller than the mesh apertures pass through the screen, while oversize particles discharge from the opposite end to finish sieving and classification.

Key Features:

1. Compact low-profile structure:

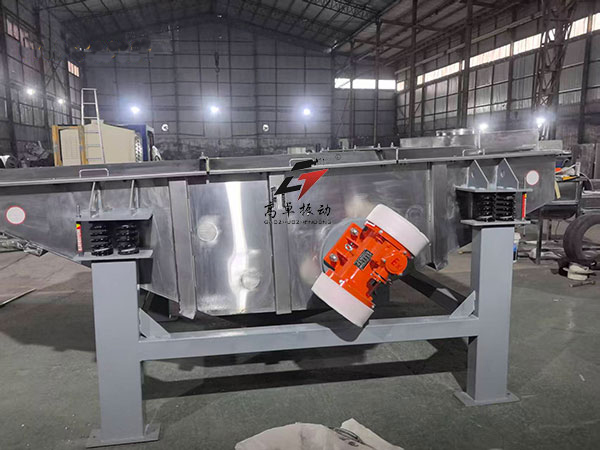

Vibration motors are mounted on bath sides of the screen box, which significantly reduce the overall equipment height and enables easy installation and use in space-constrained sites.

•

2. Splash-proof motor protection:

The sode-mounted design effectively prevents water or liquid feom splashing onto the motors, improving equiipment reliability and operational safety when processing wet materials.

3. High sieving efficiency:

The linear motion trajectory ensures even material distribution on the screen surface, delivering high sieving efficiency and large processing capacity.

4. Stable operation and easy maintenance:

The dual-motor drive delivers excellent balance with mild vibration and relatively low noise. Its simple structure also supports convenient routine maintence.

Applications:

The side-mounted linear vibrating screen is widely used across multiple industrial sectors, including:

• Chemical industry: Sieving andclassification of chemical raw materials, powders and granules such as plastics, fertilizers and pesticides.

• Metallurgy and coal: Particle size classification and impurity removal for coal and coke.

• Building materiaks and ceramics: Sieving of cement, gypsum and ceramic rew materials to control product particle size.

• Grain and Food: Cleaning and classification of grain, feed amd food raw materials.

• Pharmaceutical industry: Fine sieving of pharmaceutical raw materials, intermediates and finished products to ensure consistent product quality.

• Other sectors: Material sieving and sorting in environmental protection, renewable resource recovery and related fileds.

If you need a reliable sieving solution for facilities with limited with limited vertical space, or require a durable unit for consistent wet material processing, our side-mounted linear vibrating screens deliver an optimal balance of compact design, high throughput and long service life. We provide fully customizable configurations of screen dimensions, mesh count and motor specifications to match your exact production requirements. Contact us today to discuss your application and request a free, no-obligation quotation.
