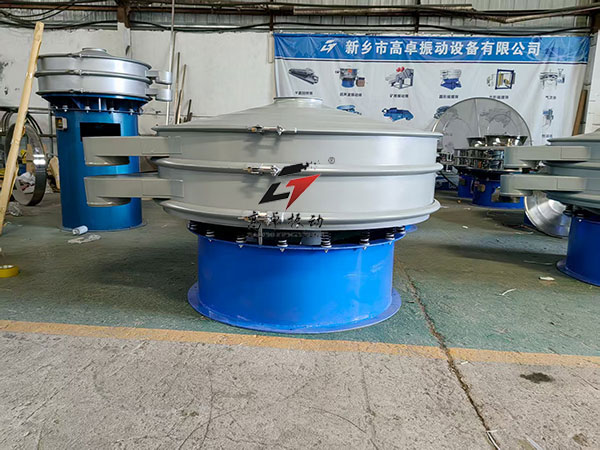

The 3D rotary vibrating screen is a high-precision fine powder sieving machine. It features low operating noise, high processing efficiency and 3-5 minute quick mesh replacement, and adopts a fully enclosed structure suitable for screening and filtering granular, powdery and slurry materials. Powered by a vertical vibration motor as the excitation source, it is fitted with eccentric weights on both upper and lower ends of the motor. The weights convert the motor's rotary motion into three-dimensional horizontal, vertical and inclined movement, which is then transmitted to the screen surface. Adjusting the phase angle of the two sets of weights can alter the material movement trajectory on the screen.

Working Principle:

The 3D rotary vibrating screen takes a vertical vibration motor as its excitation source, with eccentric weights mounted on the upper and lower ends of the motor. The weights convert the motor's rotary motion into three-dimensional horizontal, vertical and inclined movement and transmit the motion to the screen surface, driving materials to follow an outward involute trajectory. This specific movement is how the series gets the name "rotary vibrating screen". It boasts long material travel path and high screen surface utilization. By adjusting the phase angle of the upper and lower weights, users can modify the material movement path on the screen to acheive precise screening and probability screening.

Key Features:

1. Compact size and light weight for easy mobility. The discharge outlet can be freely positioned in any direction. It delivers automatic discharge of oversize and undersize materials, supporting both automated and manual operation.

2. High screening precision and efficiency, compatible with all types of powders, granules and slurries.

3. No mesh clogging and no dust emission. Screening fineness reaches 500 mesh (28μm), and filtration fineness can go as fine as 5μm.

4. Unique split screem frame design extends screen service life and enables quick mesh replacement in just 3-5 minutes. It is simple to operate and easy to clean.

5. No exposed moving mechanical parts for simplified daily maintenance. It supports single or multi-layer configuration, and all material-contact parts are constructed from stainless steel (excluding custom pharmaceutical models).

Appications:

It applies to a wide range of powder processing sectors, and can handle most granules, powders and slurries within specification limits.

• Chemical industry: Resin powder, pigments, detergent powder, micron powder, points, soda ash, lemon powder, rubber, plastics, etc.

• Abrasive and ceramic industry: Aluminum oxide, quartz sand, slurry, spray-dried soil granules, etc.

• Food industry: Sugar, salt, soda, monosodium glutamate, milk powder, soy milk, yeast, fruit juice, soy sauce, vinegar, etc.

• Paper industry: Coating compounds, clay slurry, black and white liquor, papermaking liquor, wastewater reconery, etc.

• Metallurgy industry: Titanium oxide,zinc oxide, electromagnetic materials, metal powder, welding flux powder, etc.

• Pharmaceutical industry: Herbal powder, herbal extracts, western medicine powder, liquid mechine, Chinese and western medicine grabules, etc.

• Environmental protection: solid waste, livestock manure, waste oil, food wastewater, wastewater treatment, etc.

If you need a reliabel high-precision sieving solution for fine powders, granules or slurries across different production lines, our 3D rotary vibrating screens deliver stable performance and flexible configuration to match your exact process requiremrents. We provide customized options for mesh count, layer number  and construction material to fit specific application needs, Contact us today to discuss your project and request a free, no-obligation quotation.

Email: tujinhli@gzvibratingscreeen,com 丨 Tel：+86 13403738206
