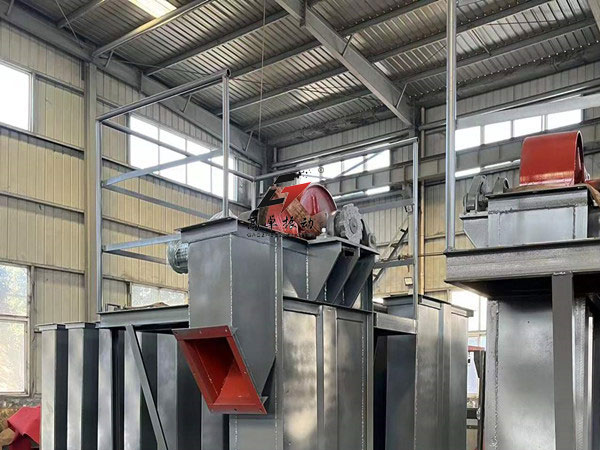

The TD type bucket elevator is a new product developed bases on the D type, it has remarkable advantages including more specifications, larger conveying capacity, higher lifting height, stable and reliable operation and longer service life. Its main technical performance and parameters comply with the JB3926-85 standard for vertical bucket elevators.
Working Principle:
The TD type bucket elevator achieves vertical material conveying through a closed-loop traction system. Its core structure consists of traction components (belt or chain), evenly spaced buckets, drive unit, and feed and discharge ports. During operation, the motor drives the traction component to circulate via a speed reducer. Buckets at the bottom scoop up materials from the feed inlet and rise vertically with the traction member.
When buckets reach the head pulley at the top, discharge is completed by centrifugal force or gravity. Belt-driven models throw materials into the discharge port by centrifugal force, while chain-driven models realize gravity discharge through bucket tilting. Empty buckets return to the bottom alongh the return strand for reloading, forming a continuous conveying cycle. The whole process runs inside an enclosed casing to control dust spillage, suitable for vertical transportation of powdery, granular and small lump materials such as cement and grains.
Key Features:
1. Large conveying capacity. Compared with the D type with the same bucket width, the TD type delivers nearly double the throughput.
2. The traction component adopts a high-strength rubber conveyor belt with excellent tensile strength and long service life.
3. The whole machine features a simple structure, easy installation, and convenient adjustment, maintenance and upkeep.
4. Alternatively, the traction component can be a low-alloy high-strength round link chain. With specialzed heat treatment, it delivers exceptional tensile strength and wear resistance for extended service life.
The TD type bucket elevator adopts centrifugal or combined discharge with scoop loading. It is suitable for low-abrasion powdery, granular and small lump materials with a bulk density of no more than 1.5/m³, and the material temperature shall not exceed 60°C.
Four bucket types are available: Q type (shallow bucket), H type (arc-bottom bucket), ZH type (medium-deep bucket) and SH type (deep bucket) for different materials. Users can select the appropriate buvket type according to material properties.
If you are looking for a cost-effective vertical lifting solution with flexible configuration options for your bulk material handling process, Gaozhuo's TD series bucket elevators deliver reliable long-term performance with low operating costs. We can customize bucket types and traction forms to match your specific material and working conditions. Cobntact us today to discuss your project and request a free, no-obligation quotation.
