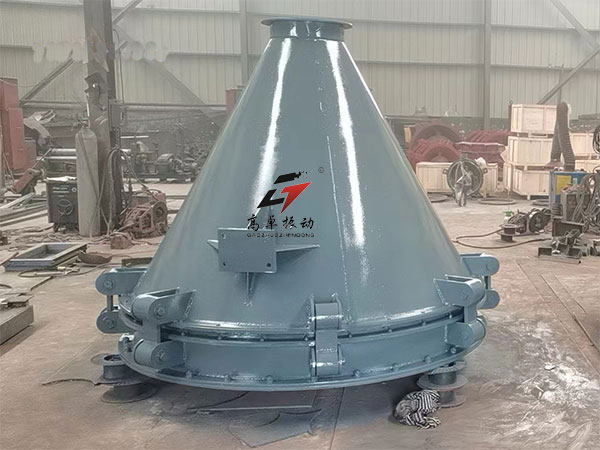

The ZD series vibrating hopper feeder is an advanced discharging device installed at the bottom of storage bins. It eddectively eliminates material arching and bridging insiide the bins. It effectively eliminates material arching and bridging inside the bin, and serves as a reliable solution for arching control and blockage prevention.

Working Principle and Features:
Powered by a specially designed vibrating motor as the excitation source, The ZD series vibrating hopper feeder features smooth operation, low noise, simple dtructure, easy operation, minimal maintenance and long service life. Compared with other types of vibrating hoppers, this series maintains continuous and stable discharge with an accuracy within ±5%. By adjusting the phase angle of eccentric weights on both sides of the vibrating motor, users can alter the excitation force to achieve the desired discharge flow rate. Material flow stops automatically once the desired discharge flow rate. Material flow stops automatically once the vibrating motor shuts down. When paired with an electric control cabinet, it realizes timed and quantitative discharging.

Applications:

It is widely applied in mining, metallurgy, thermal power, glass, chemical, construction, building materials, ceramics, refractory materials, power processing, cement, grain and other industries.

If you are facing materiak arching or clogging issues in your silo discharging process, Gaozhuo's ZD series vibrating hopper feeders provide a cost-effective low-maintenance solution to upgarte your material handling efficiency bin dimensions and custom configurations to fit your soecific bin dimensions and material properties. Contact us today to discuss your project requirements and get a free, no-onligation quotation.
