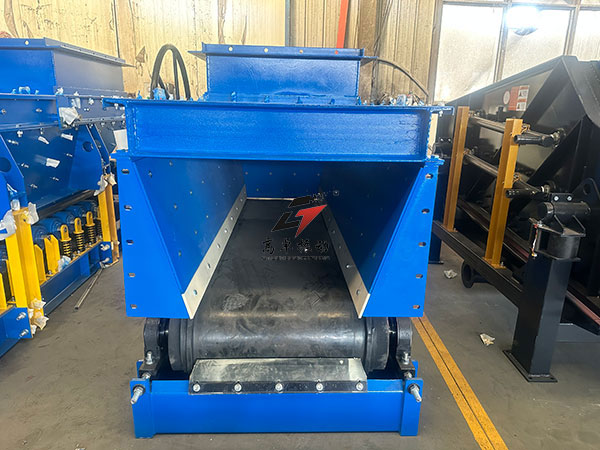

Also referred to as a belt coal feeder, the coal belt conveyor is a core automated material handling unit for coal processing systems. It adopts a wear-resistant, high-strength endless belt as its core conveying medium, integrated with match drive, speed regulation, flow control and precise high-volume transfer of raw coal, pulverized coal and other coal products. Its advantages of smooth operation, high efficiency, low energy consumption, easy maintenance and strong adaptability have made it a full replacement for outdated manual feeding and intermittent conveying methods. It elevates the automation level of coal handling processes, cuts lovar costs and lowers operational risks, and is now widely deployed in thermal power, mining, metallurgy and fine chemical industries as an indispensable device for coal production, processing and combustion feeding.
Working Principle:
The coal belt conveyor operates on a mechanical power drive and closed-loop conveying structure for stable, fully automated continuous operation. Its core power unit is a three-phase electric motor. Once started, the motor outputs high-speed rotational power, which is adjusted for speed and amplified for torque through a speed reducer, conveying high-speed, low-torque power into low-speed, high-torque stable driving force to drive the head drive pulley to rotate at a constant speed. The drive pulley and tail pulley form a closed-loop transmission structure via the endless belt, and friction between the pulleys and the belt drives the endless belt to run in a smooth linear cycle.
During operation, the discharge device at the bottom of the coal silo feeds material evenly. Raw coal, pulverized coal and other materials accumulate uniformly on the belt surface, and move with the belt's directional linear motion to be continuously transported from storage locations such as coal silos and stockyards to target production equipment including coal pulverizers, boilers, washing equipment and reaction vessels. Most intelligent models can be equipped with a variable frequency speed control system, which adjusts belt speed by regulating motor speed to precisely control coal delivery volume. This enables on-demand and quantitative feeding, perfectly matching the production rhythm of downstream equipment and ensuring stable and continuous operation of the entire production line.
Applications:
Thermal power plants represent the core and primary application scenario for coal belt conveyors, as the equipment directly affects the stable operation and power generation efficiency of generator sets. During power plant operation, a continuous, stable and quantitative supply of raw coal is required for boiler pulverizers. Belt conveyors can deliver uninterrupted coal feeding 24 hours a day, completely eliminating issues such as unstable boiler combustion, flame fluctuation and unit load instability caused vy intermittent feeding. By adjusting coal conveying speed through variable frequency flow control, the system precisely matches boiler comnustion load requirements and ensures full and uniform coal combustion in the durnace. This not only improves power generation effciency and ensures safe and stable unit operation, but also reduces coal loss and excessive exhaust emissions, supporting power plants in acheving energy saving, consumption reduction and environmental compliance.
In coal mining, coal washing iron and steel metallurgy and coking industries, belt conveyors play a key role in material transfer and process connection. In mining operations, the equipment transports extracted raw coal from underground working faces or open-pit mines to ground sorting, screening and washing equipment for preliminary purification and impurity removal. In coal washing plants, it realixes classified conveying and transfer of raw coal, clean coal, middings and gangue. On metallurgical heating furnaces to supply stable raw materials for coking, metal smelting and ore sintering processes, ensuring efficient connection and continuous operation of all production links.
Fine chemical and coal chemical industries have extremely high requirements for the accuracy and uniformity of raw material feeding, and coal belt conveyors can fully meet the refined operation demands of chemical production. In coal chemical production, coal is the core raw material. The equipment can strictly control the feeding volume and speed of pulverized coal and raw coal supply fully matches the process parameters of gasification, cracking, synthesis and other chemical ractions. Precise quantitative feeding effectively avoids problems such as insufficient chemical reaction, unqualified product purity and increased production energy consumption caused by excessive or insufficient raw materials. It ensures stable chemical reactions and controllable process parametera, improves product qualification rate and production atability, and supports automated continuous operation of chemical production lines to enhance onerall production efficiency.
If you seeking a reliable, high-efficiency coal conveying solution to optimize your production line and reduce operational costs, Gaozhuo's heavy-duty coal belt conveyors offer proven performance and flecible custmization optrions. We provide tailored configurations including belt material selection, speed control systems and fully enclosed designs to match your specific working conditions. Contact us today to share your project requirements and receive a free, no=obligation technical proposal and quotation.
