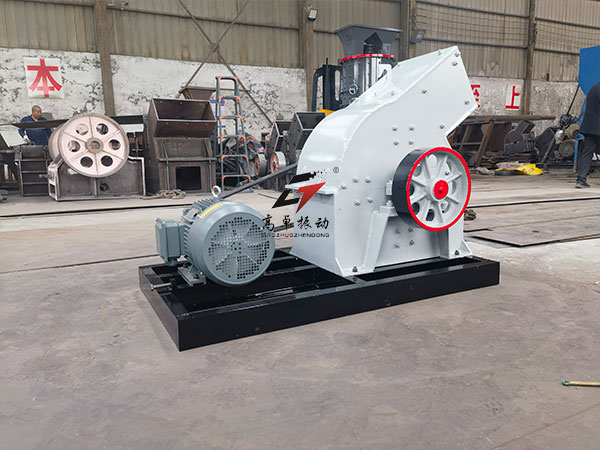

Hammer crusher is an impaxt-type material crushing device available in two configurations: single rotor and double rotor. It xompletes crushing by applying impact, shear and grinding forve to materials through high-speed rotating hammers. It can directly crush materials with a maximum particle size of 600-1800mm tobelow 25mm, and is suitable for crushing medium-hard materials in cement, chemical, power, metallurgy and other industries.

一、Working Principle

1. Power Drive: The electric motor drives the main shaft to rotate through a V-belt. causing the hammers mounted in the rotor to move at high speed (the hammers extend under centrifugal force).

2. Impact Crushing: After entering the crushing chamber, materials are shattered by the high-speed impact of the hammers. Some materials rush toward the impact plates or svreen plates on the inner wall of the casing due to kinetic energy, undergoing secondary collision crushing.

3. Screening and Discharge: Crushed materials are discharged through the gaps of the bottom screen plate (or grate bars). Materials that do not meet the particle size requirements continue to be repeatedly impacted and ground by the hammers in the chamber until they are qualified.

4. Moisture Limit: To avoid clogging, the moisture content of materials should generally be ≤8-10%. Some models support both dry and wet crushing modes.

二、Key Features

1. Structural Characteristics:

Simple and compact structure,light body weight, and convenient operation and maintenance.

Core components include rotor, hammers, screen plates and wear-resistant liners. Hammers and grate bars are wear parts that require regualr replacement.

2. Performance Advantages:

High crushing ratio (10-25, up to 50), enabling one-step forming and reducing the need for secondary crushing.

Low energy consumption per unit output and high production efficiency, suitable for small and medium-sized production lines.

三、Usage Precautions

1. Hammers and screen plates have a fast wear rate (requiring replacement approximately every 1 month).

2. Sensitive to material hardness and moisture, not suitable for high-hardness or viscous materials.

四、 Applications

1. Building Materials Industry: Crushes limestone, gypsum, slag, etc., for cement production or construction aggregate processing.

2. Energy Industry: Pulverizes coal, coke and other fuels to meet the needs of power and metallurgy industries.

3. Environmental Engineering: Processes construction waste and concrete scraps to achieve resource utilization.

4. Chemical and Metallurgy Industry: Performs medium and fine crushing of medium-hard ores or chemical raw materials.

Hammer crushers have become core equipment for crushing medium and low hardness materials due to their high crushing efficiency, flexible discharge control and wide applicability.
