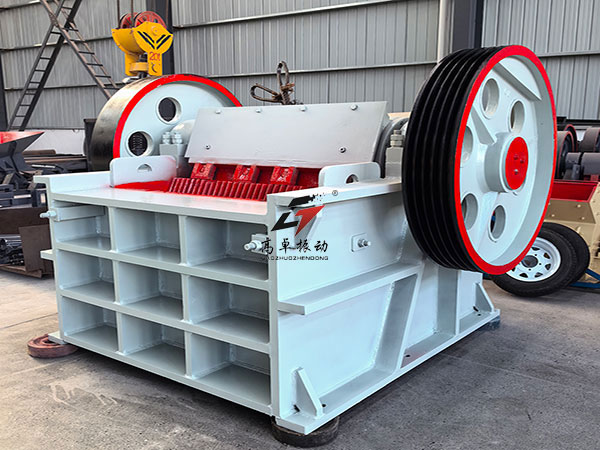

Commonly known as "jaw breaker" or " tiger mouth", the jaw crusher consists of a crushing chamber formed by two jaw plates: a moving jaw and a fixed jaw. It simulates the biting motion of animal jaws to achieve material crushing.

Inspired by the mechanical structure invented by Eli Whitney Blake in the United States in 1858, it is now widely used in mining, building materials, highways, railways, water conservancy and chemical industries. It can process ores, rocks and other hard materials with compressive strength ≤ 320MPa.

Working Principle

Power Drive: The enectric motor drives the eccentric shaft to rotate through the pulley, which drives the moving jaw to perform periodic reciprocating motion.

Compression Crushing: The moving jaw and fixed jaw form a crushing chamber that is wide at the top and narrow at the bottom. After entering the chamber, materials are crushed by the extrusion and grinding action of the moving jaw. Crushed materials are discharged from the discharge opening when the moving jaw retreats.

Continuous Operation: The continous rotation of the eccentric shaft causes the moving jaw to move cyclically, enabling mass production.

Key Features

Structural Advantages:

Simple and reliable structure. The frame is made of cast steel or welded steel plates, providing strong stability.

The surfaces of the moving jaw and fixed jaw are treated with wear-resistant materials to extend service life.

Performance Advantages:

High crushing ratio (up to 4-6) with uniform finished product particle size. Flexible discharge opening adjustment. The discharge particle size can be controlled by adding or removing shims or using hydraulic devices.

Operation and encironmental Protection:

Low maintenance cost. Jaw plates have a service life of approximately 1 year. Fully sealed design reduces dust leakage, complying eith environmental protection requirements.

Applications

Mining Industry: Used for primary and secondary crushing of hard rocks such as iron ore, copper ore and granite.

Infrastructure Engineering: Crushs construction wate and concrete aggregates to provide building materials for highways and railways.

Industrial Sector: Processes medium anf low hardness materials such as limestone and gypsum, applied in chemical and metallurgical industries.

Laboratory Scenarios: Small sealed models are used for sample preparation in laboratories, supporting 380V/220V voltage.

Jaw crushers have become core equipment in mining and industrial fields due to their efficient compression crushing principle, structural reliability and wide applicability.

If you are looking for a reliable and efficient primary crushing solution for your hard materials processing needs, Gaozhuo's jaw crushers are your ideal choice. We offer a full range of models and customized configurations to meet your specific production requirements. Contact us today to discuss your project needs and receive a detailed, no-obligation quotation.
