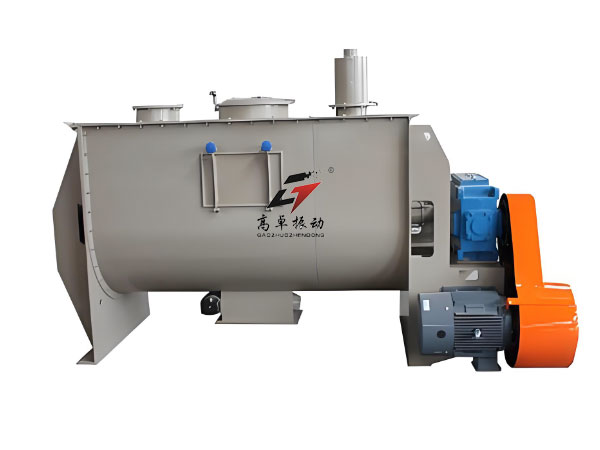

The WLDH Series Horizontal Ribbon Blender is a high-performance industrial mixing equipment designed for efficient homogenization of powder, granular, cohesive and paste-like materials. It consists of a U-shaped vessel, helical ribbon agitators and driving components, delivering stable and uniform mixing with high efficiency.
1. Working Principle:
The inner and outer reverse helical ribbons mounted on the miving shaft drive material circulation. The inner ribbon pushes materials from the center to both sides, while the outer ribbon collects materials from both side to the center, generating strong convection, shearing and turbulent mixing, realizing rapid and uniform blending in a short time.
2. Product Overview:
Equipped with double or triple-layer helical ribbons, this blender performs outstanding mixing effects on viscous, cohesive powders and liquid-added paste materials. The full-open cylinder cover facilitates quick cleaning and product changeover, meeting flexible production demands.
3. Key Advantages
A.. Premium Drive System:
Adopts belt-driven cycloidal reducer with elastic connection, protecting transmission parts effectively under overload conditions.
B. Flexible Disassembly & Assembly:
The ribbon main shaft is flange-connected with the drive shaft, enabling quick dismantling for maintenance. The welded U-shaped barrel eliminates material accumulation gaps.
C. Split-type Ribbon Design:
Generates stronger shearing force and more material turbulence, accelerating mixing speed and improving uniformity.
D. Optimal Discharge Structure:
Equipped with pneumatic/manual tilting valve, which is flush with the barrel inner wall to avoid material buildup and dead corners, with reliable sealing for zero leakage.
E. Heating & Cooling Function:
Optional external jacket for cooling (industrial water) or heating (steam/thermal oil), adapting to temperature-controlled mixing processes.
F. Airtight Main Shaft Seal:
Equipped with airtight sealing device to isolate gas and powder exchange between inside and outside the barrel.

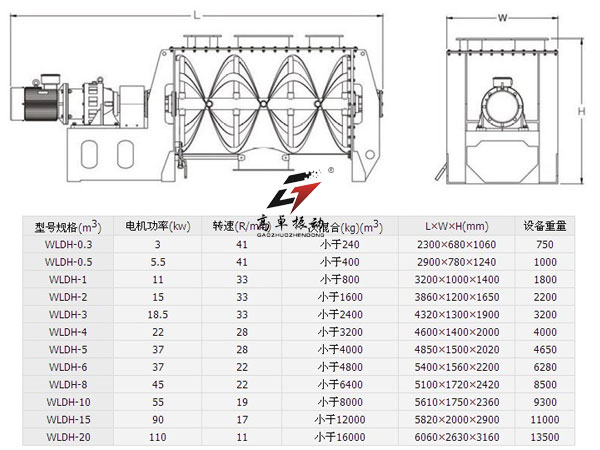

4. Technical Parameters
Customizable technical parameters are available to match different production capacities, material characteristics and process requirements.
