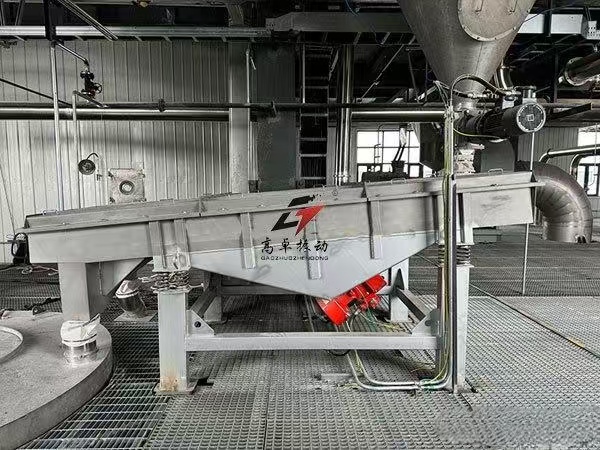

The side-excited linear vibrating screen is a high-performance screening machine. It works on the principle of dual vibration motors rotating synchronously in opposite directions to generate linear exciting force, which makes materials move forward in a jumping motion on the screen surface and complete screening. Its core advantages include compact structure, low overall height, small occupied area and effective protection against water splashing on motors, making it ideal for sites with limited installation space.



Ⅰ Working Principle



With dual vibration motors as the excitation source, the synchronous counter-rotation of eccentric weights produces horizontal linear exciting force, driving the screen box and mesh to perform linear reciprocating motion. Materials are thrown up and move forward continuously; particles smaller than the screen openings pass through the mesh while oversized ones are discharged from the other end, realizing efficient screening and classification.



Ⅱ Main Features



- Compact & Low Profile: Vibration motors are mounted on both sides of the screen box, greatly reducing the overall height and suitable for space-limited installation.



- Motor Splash Protection: Side-mounted design effectively prevents moisture or liquid from splashing on motors, improving reliability for wet material screening.



- High Screening Efficiency: Linear motion ensures uniform material distribution, delivering high efficiency and large processing capacity.



- Stable & Easy Maintenance: Dual-motor drive offers good balance with low vibration and noise, and the simple structure allows easy daily maintenance.



Ⅲ Application Areas



This screening equipment is widely used in various industrial fields:



- Chemical Industry: Screening and classification of plastic, fertilizer, pesticide and other chemical raw materials, powders and granules.



- Metallurgy & Coal: Size classification and impurity removal of ore, coal, coke and other bulk materials.



- Building Materials & Ceramics: Screening of cement, gypsum and ceramic raw materials to control particle size.



- Grain & Food: Cleaning and grading of grain, feed and food raw materials.



- Pharmaceutical Industry: Fine screening of pharmaceutical raw materials, intermediates and finished products to ensure product quality.



- Other Industries: Environmental protection, renewable resource recycling and other material sorting scenarios.

We appreciate your interest in our side-mounted linear vibrating screen and look forward to supporting your screening and separation protects. For technical details, customized solutions or on-side testing, please feel free to contact us at +86 19836236009. We are ready to provide professional and efficient service for your global business.
